Ultimate-5060 linear light

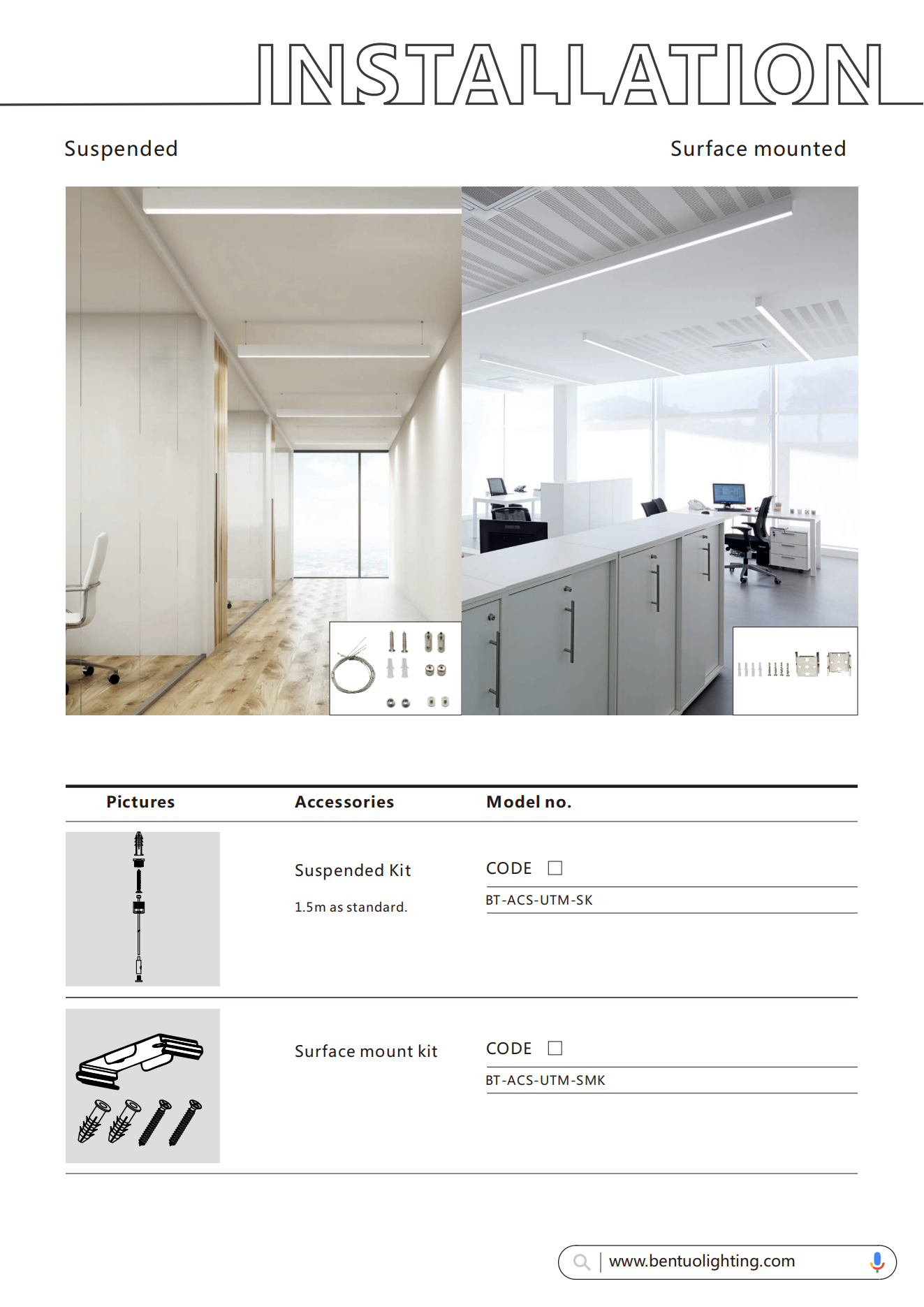

1/Suspended,surface mounted

2/Internal driver,easy to wire

3/Gen 1.0 available,up to equip 7 optics,opal,prismatic as the most popular optics

4/Seamless linkable and no any light leakage at connection

5/Able to equip built-in sensor,daylight & motion sensing

6/Zhaga PCBA equipped,modular size

7/Custom painting color available,like silver,copper & wood

8/Super high efficiency,130lm/W as standard,up to 160lm/W


Product Details

Ultimate-5060 (1).pngUltimate-5060 (2).pngUltimate-5060 (3).pngUltimate-5060 (4).pngUltimate-5060 (5).pngUltimate-5060 (6).pngUltimate-5060 (7).pngUltimate-5060 (8).pngUltimate-5060 (9).pngUltimate-5060 (10).pngUltimate-5060 (11).png

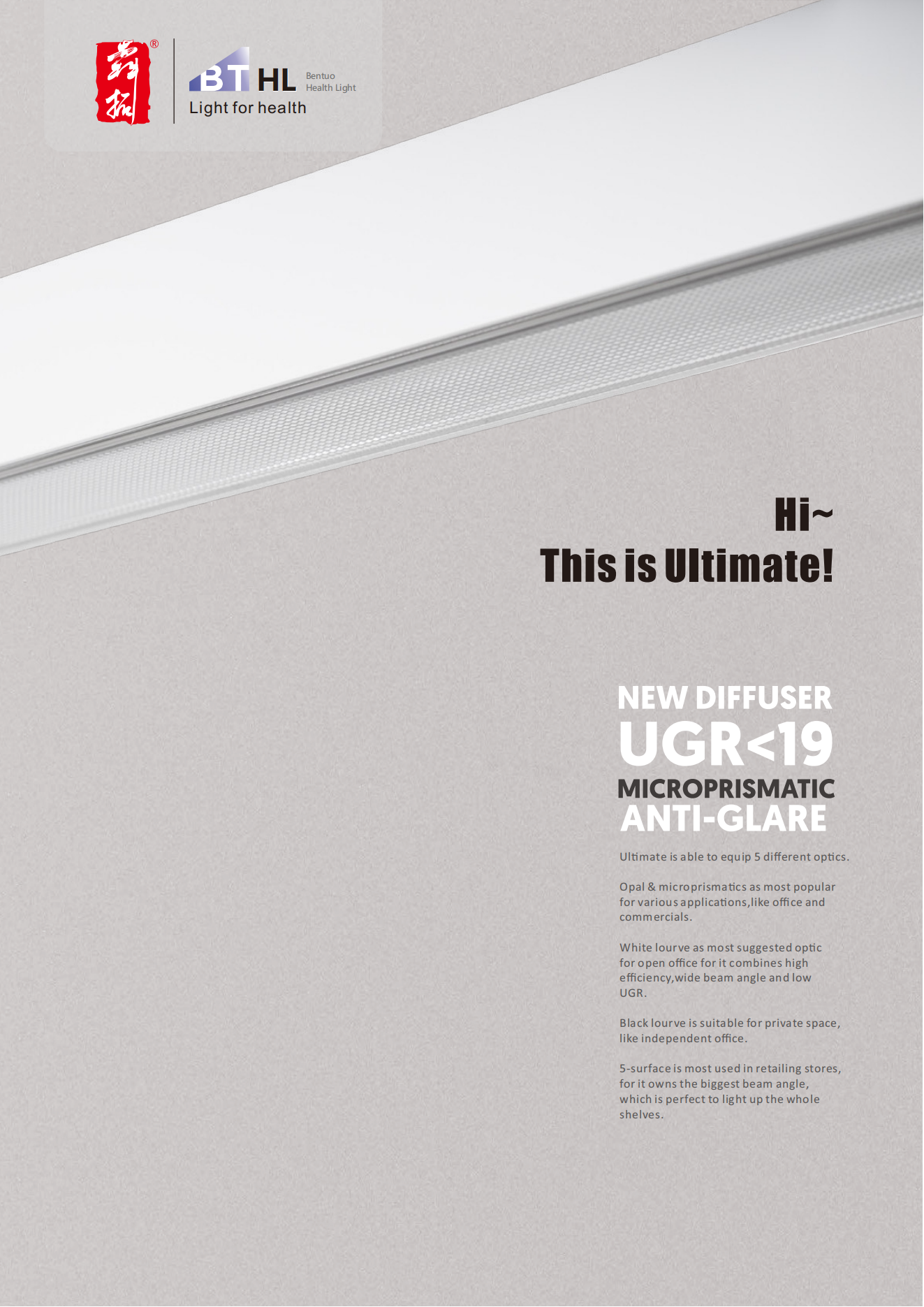

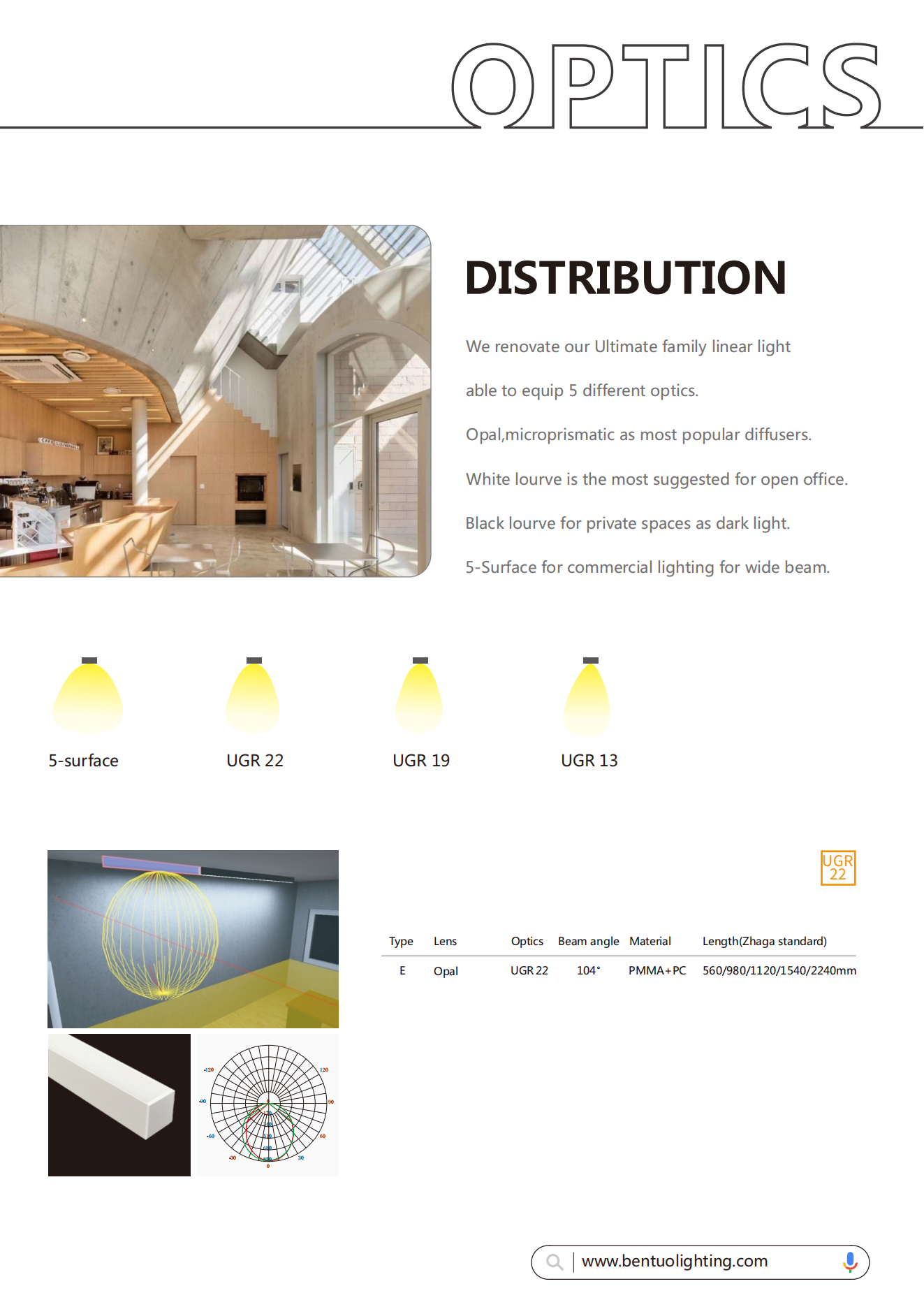

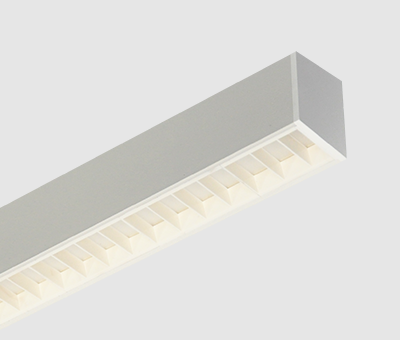

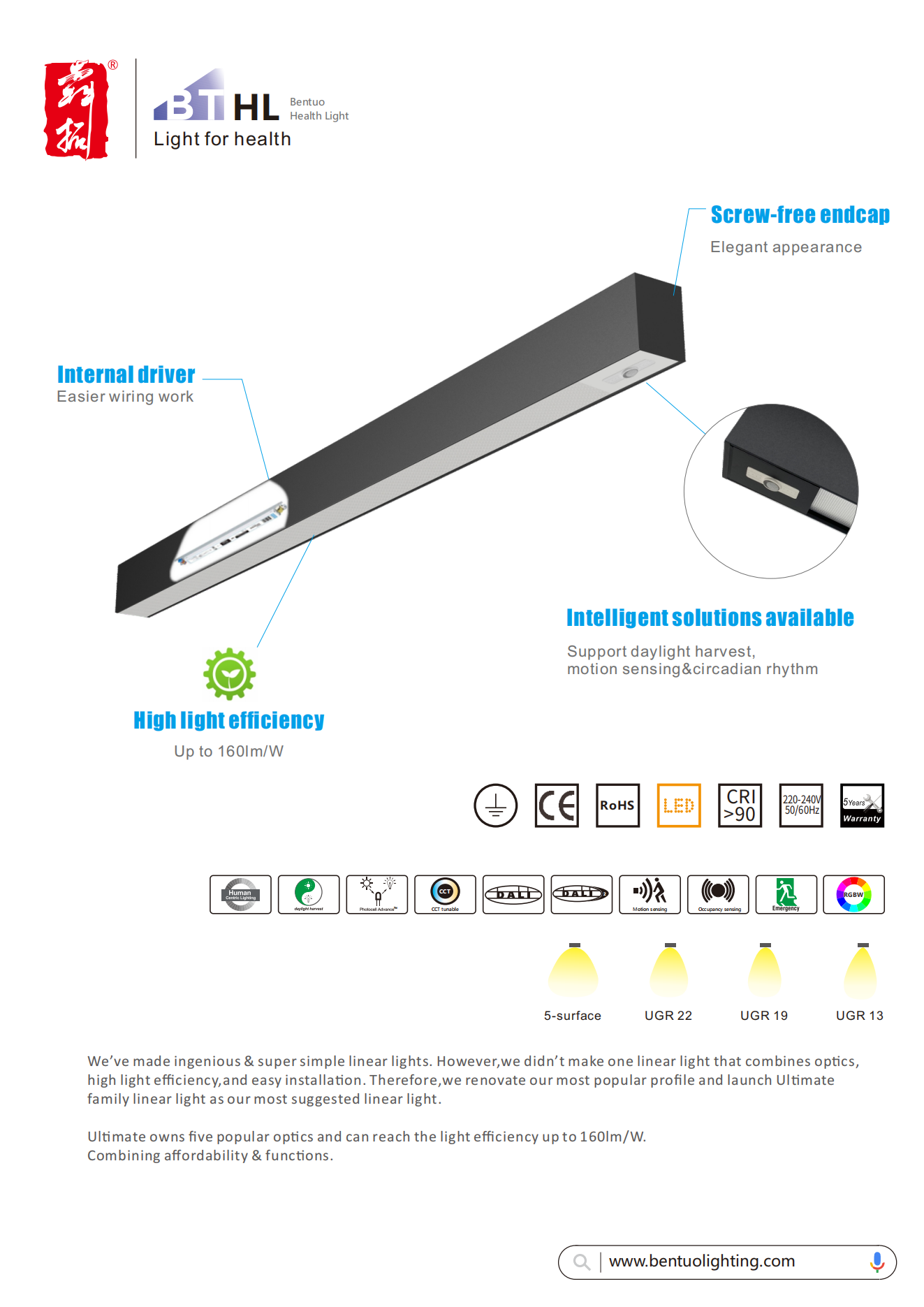

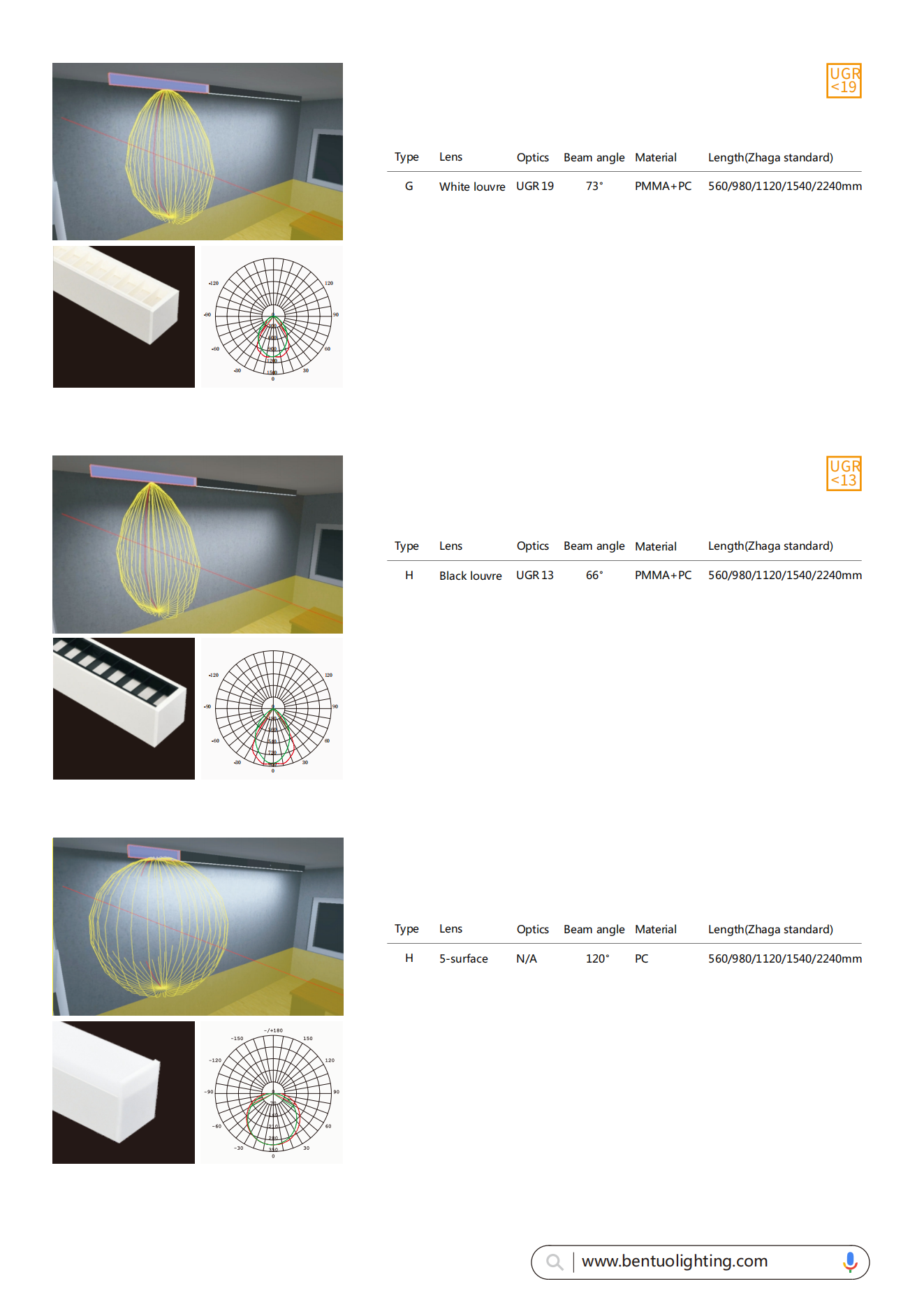

NEW DIFFUSER UGR<19  MICROPRISMATIC  ANTI-GLARE  Ultimate is able to equip 5 different optics. Opal & microprismatics as most popular for various applications,like office and commercials. White lourve as most suggested optifor open office for it combines high efficiency,wide beam angle and low UGR.Black lourve is suitable for private space, like independent office. 5-surface is most used in retailing stores, for it owns the biggest beam angle, which is perfect to light up the whole shelves. Internal driver Easier wiring work Screw-free endcap Elegant appearance High light efficiency Up to 160lm/W Intelligent solutions available Support daylight harvest, motion sensing&circadian rhythm We’ve made ingenious & super simple linear lights. However,we didn’t make one linear light that combines optics, high light efficiency,and easy installation. Therefore,we renovate our most popular profile and launch Ultimate family linear light as our most suggested linear light. Ultimate owns five popular optics and can reach the light efficiency up to 160lm/W. Combining affordability & functions.DISTRIBUTION We renovate our Ultimate family linear light able to equip 5 different optics.Opal,microprismatic as most popular diffusers. White lourve is the most suggested for open office. Black lourve for private spaces as dark light. 5-Surface for commercial lighting for wide beam.We use Zhaga standard PCBA working as the LED modules of Ultimate family linear lights.

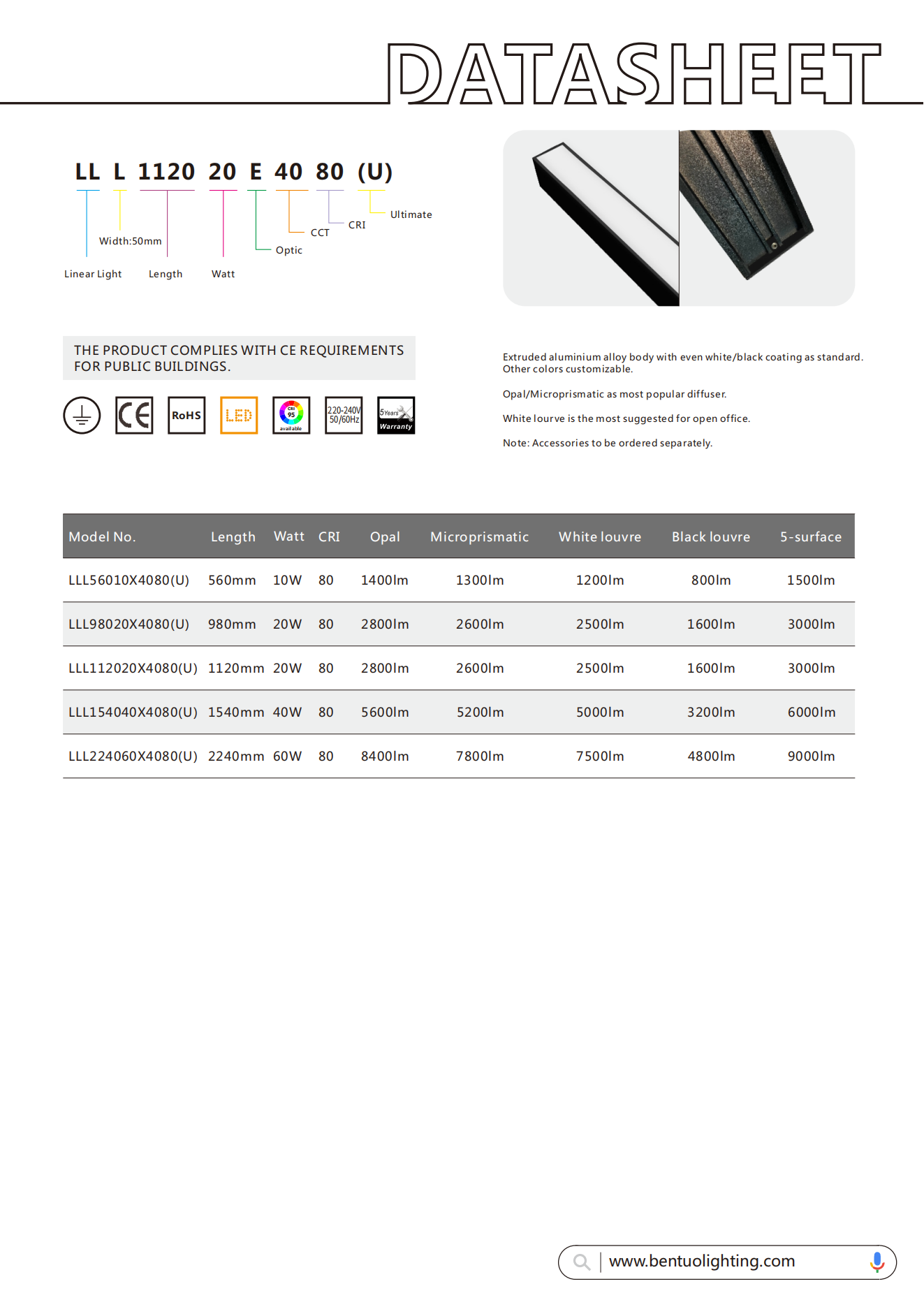

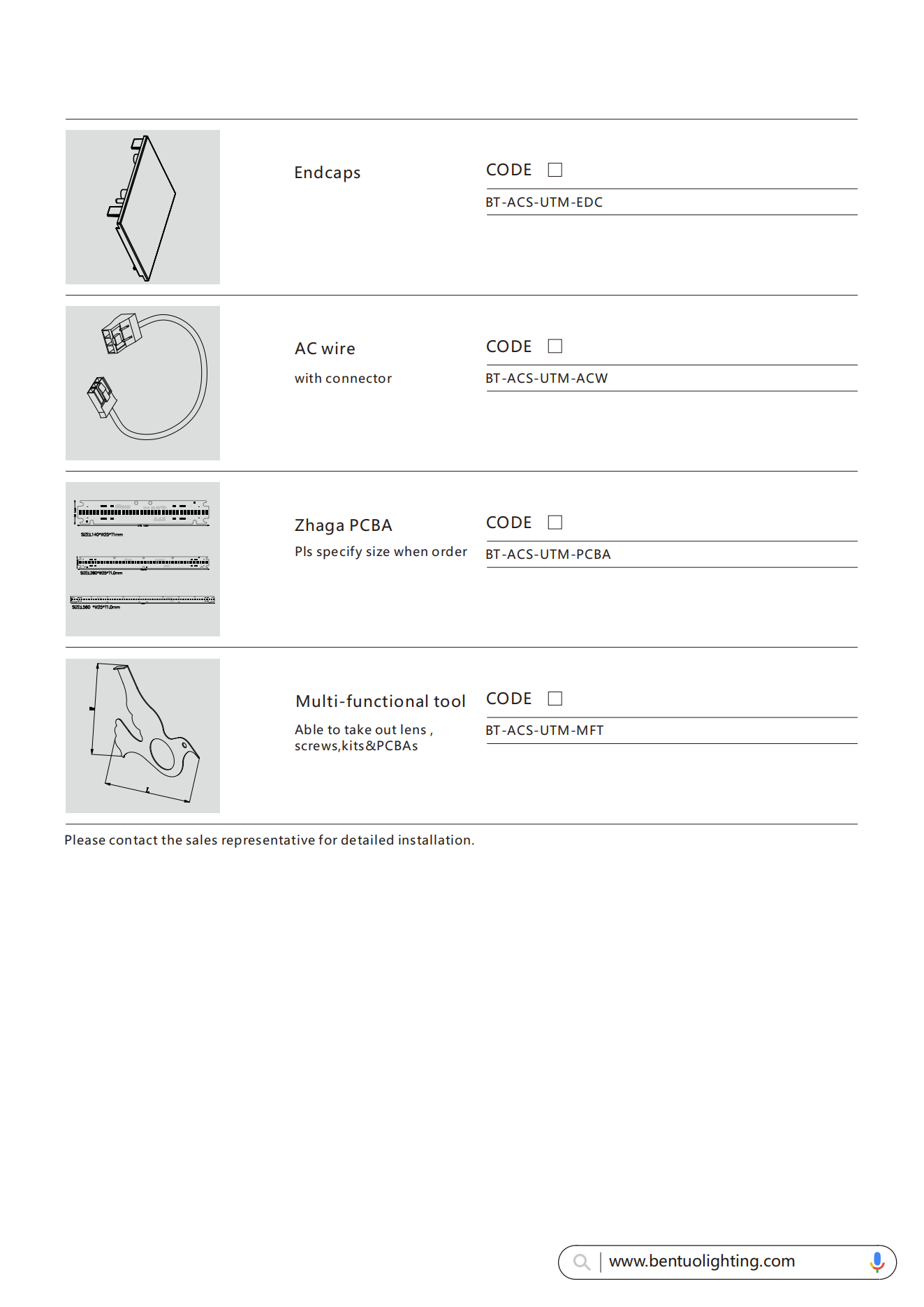

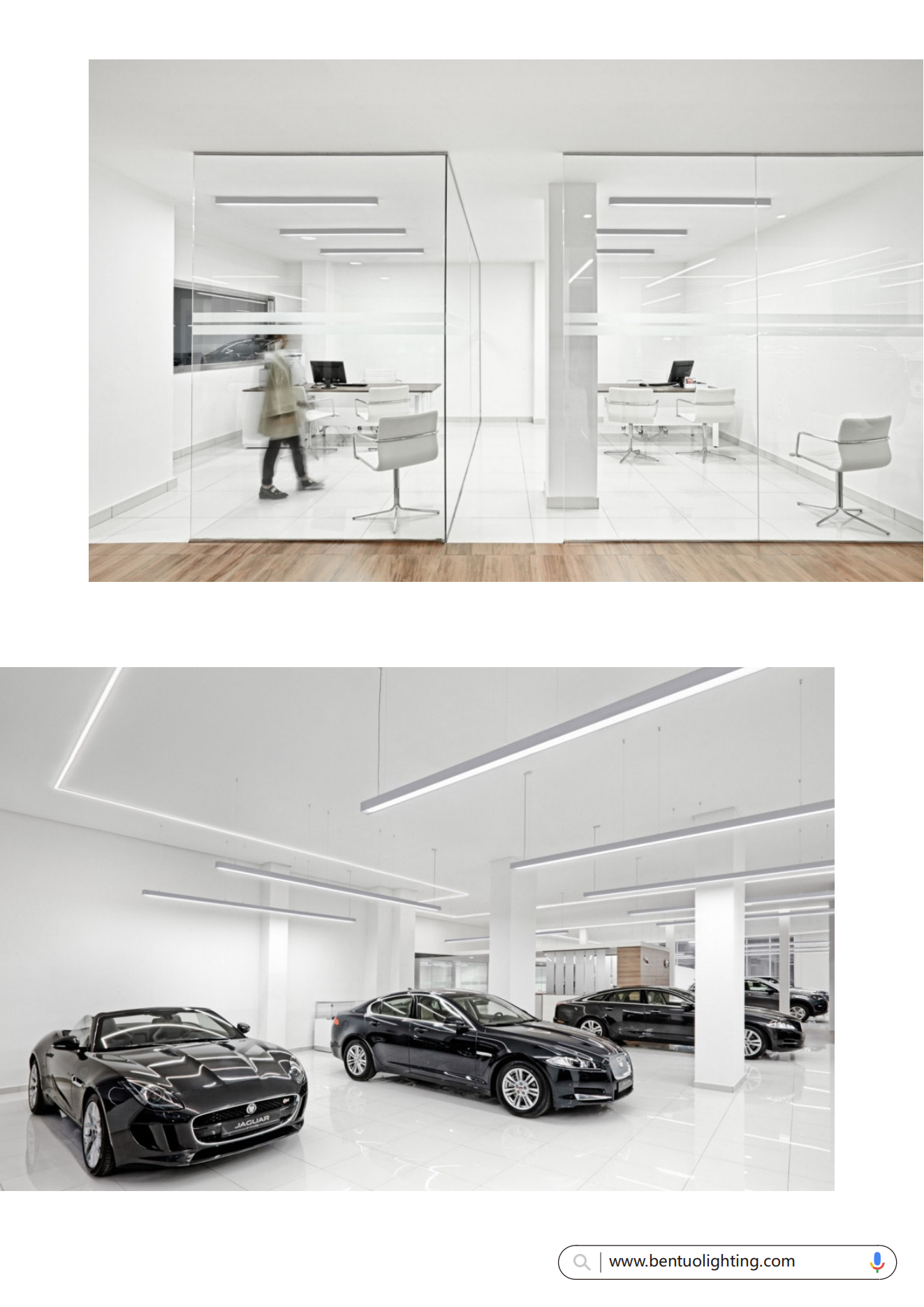

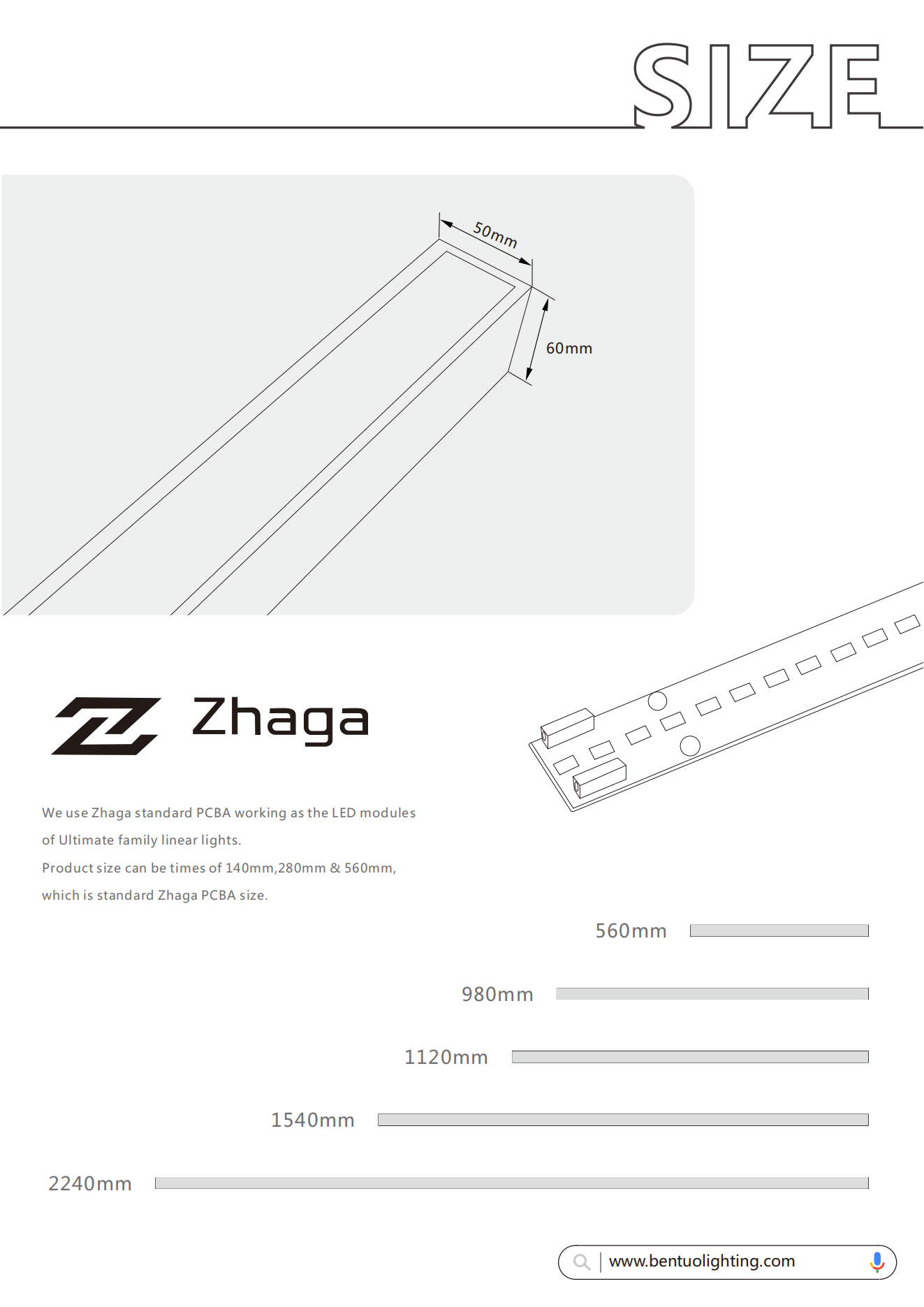

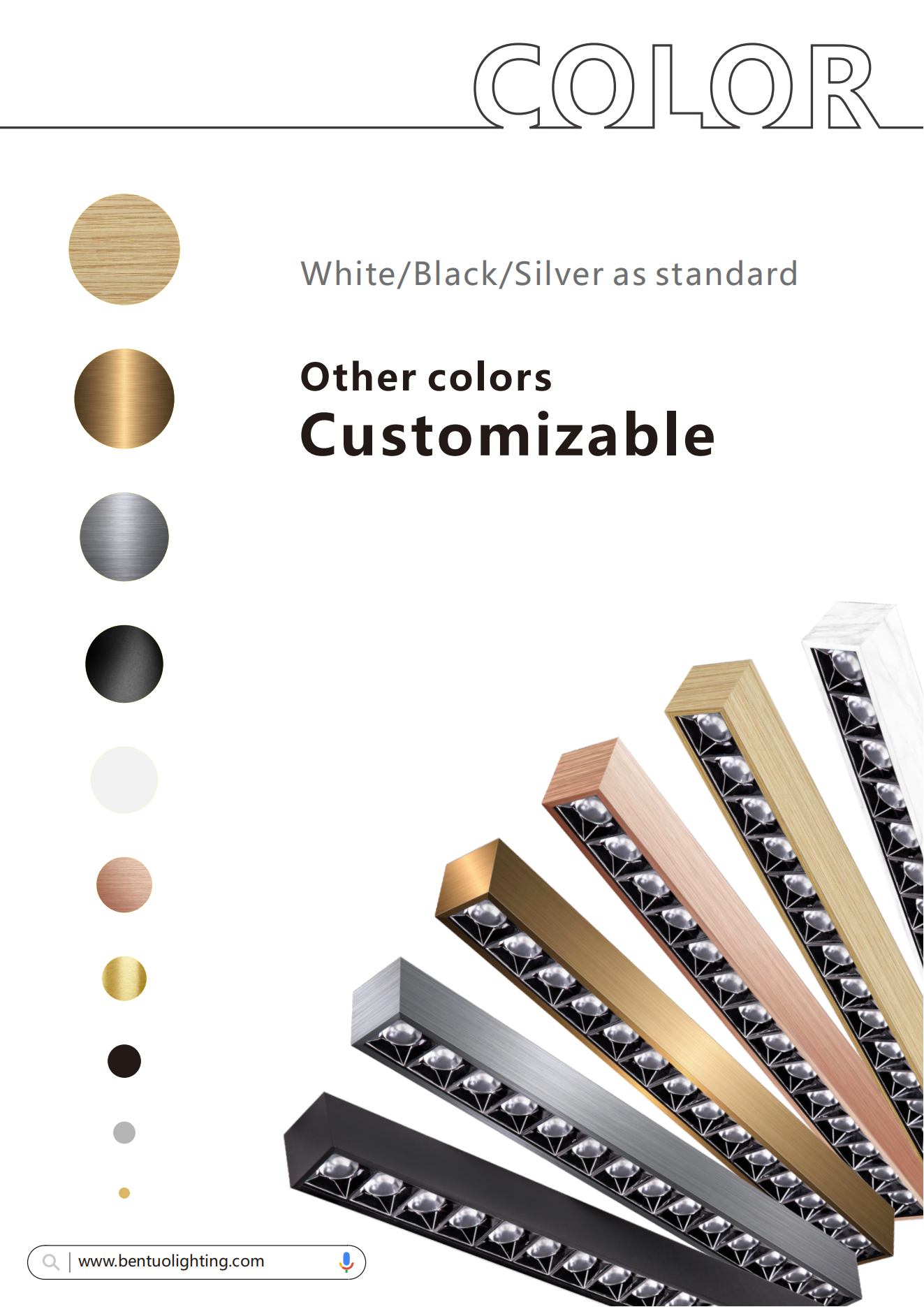

Product size can be times of 140mm,280mm & 560mm, which is standard Zhaga PCBA size. White/Black/Silver as standard Other colors Customizable Extruded aluminium alloy body with even white/black coating as standard. Other colors customizable. Opal/Microprismatic as most popular diffuser. White lourve is the most suggested for open office. Note: Accessories to be ordered separately. Our Ultimate family is perfect to illuminate those diaphanous spaces and great amplitude, after all you get a comfortable and homogeneous environmental light.
